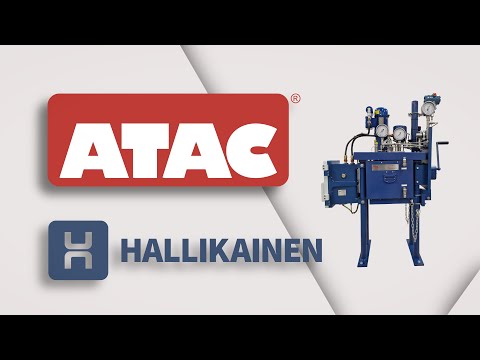

Hallikainen 1354 Vapor Pressure Analyser

The Hallikainen 1354 is a completely automatic Vapour Pressure Analyser for measuring the Reid Vapour Pressure (RVP – the vapour pressure exerted by a liquid at 37.8°C/100°F) for a wide range of refinery streams. Accurate measurements that correlate with ASTM D323 or D1267 can be made on samples having viscosities up to 80cP at the measurement temperature. The 1354 is unique in that the vapour pressure is directly and continuously measured in a bubble formed in an eductor jet. As such, the device has a continuous output that can be configured to read True Vapour Pressure (TVP) or Reid Vapour Pressure (RVP). The eduction method of measurement means that the analyser has no moving parts giving supreme reliability in a production environment.

ATEX Certified
Fast, continuous vapour pressure analysis
Accurate, reliable absolute pressure measurement
ASTM D323 or D1267
Communications – HART, Fieldbus, Modbus
Repeatability of 0.1 psi (0.007 bar)
Ingress protections IP65
Developed from the original Hallikainen VPA

Suitable for use with:
LPG
Gasoline
Naphthas/kerosenes
Crude oil
Fuel oil
