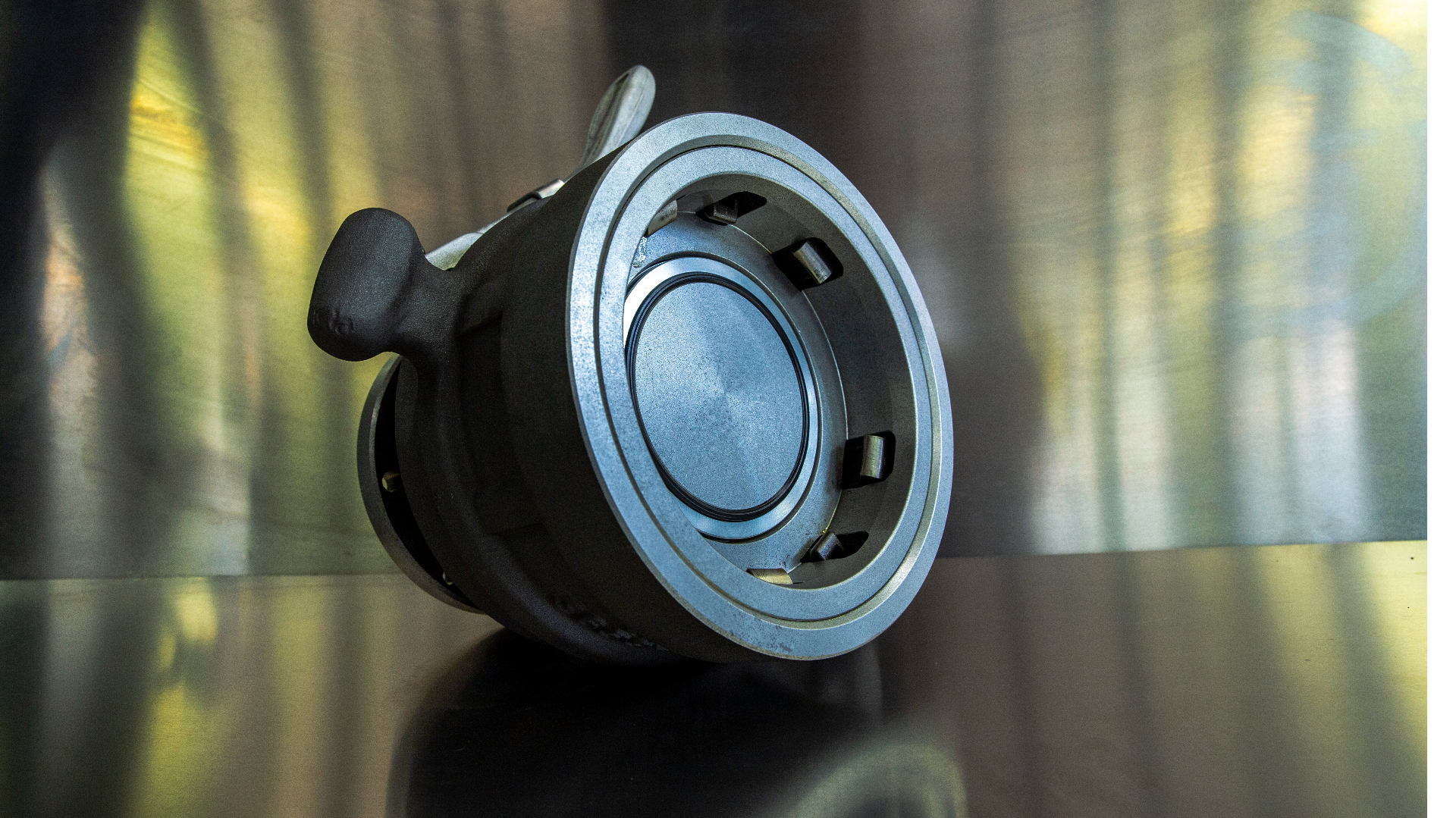

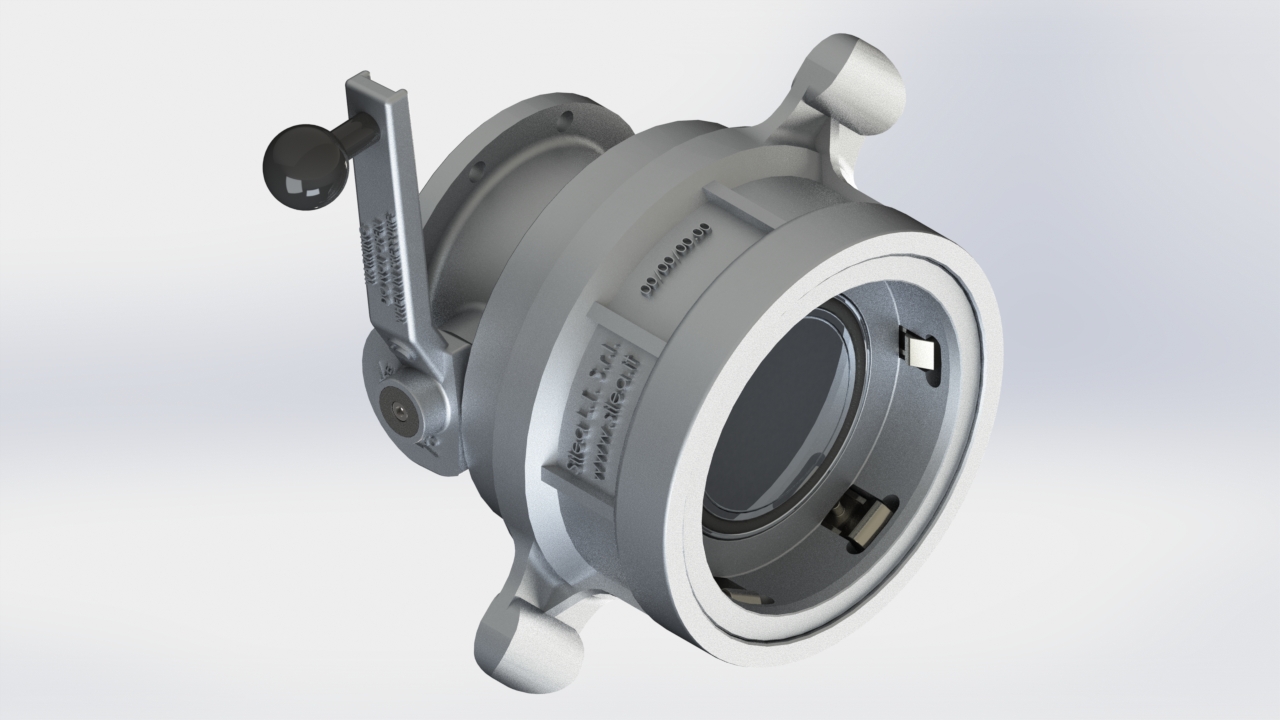

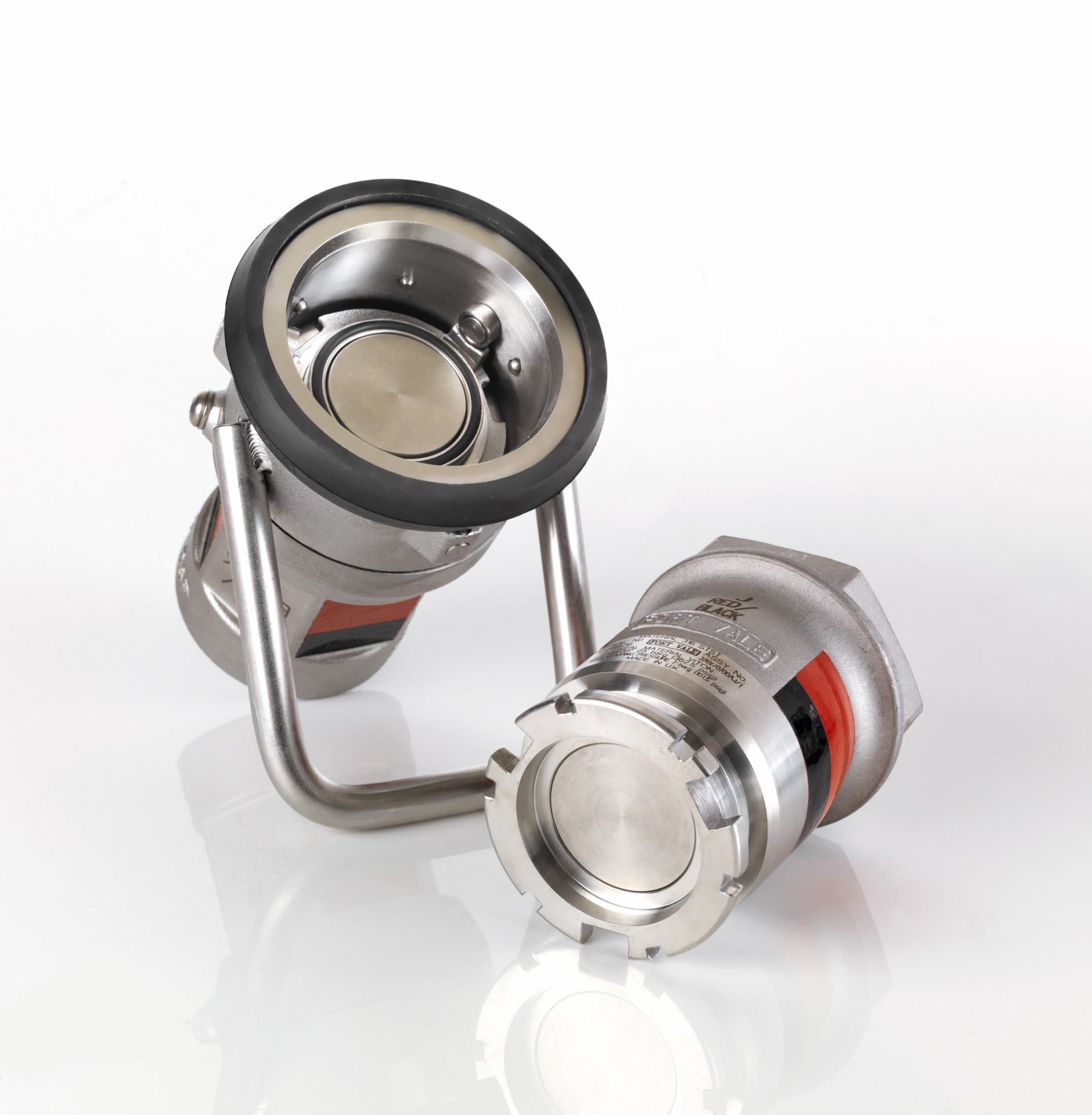

Drytyt is Fort Vale’s range of dry disconnect couplings. These provide a quick and safe bulk liquid transfer system when cargo spillage cannot be tolerated. Our couplings are manufactured to industry standards and are compatible and interchangeable with other brands. Standard sizes are 56mm, 70mm, 105mm, 119mm and 164mm and standard connections are threaded and flanged. For extra security, we can add selectivity pins, colour coding and your own company logo. We can manufacture Drytyt couplings in exotic metals. We also make pressure-tight caps to fit all tank unit sizes.

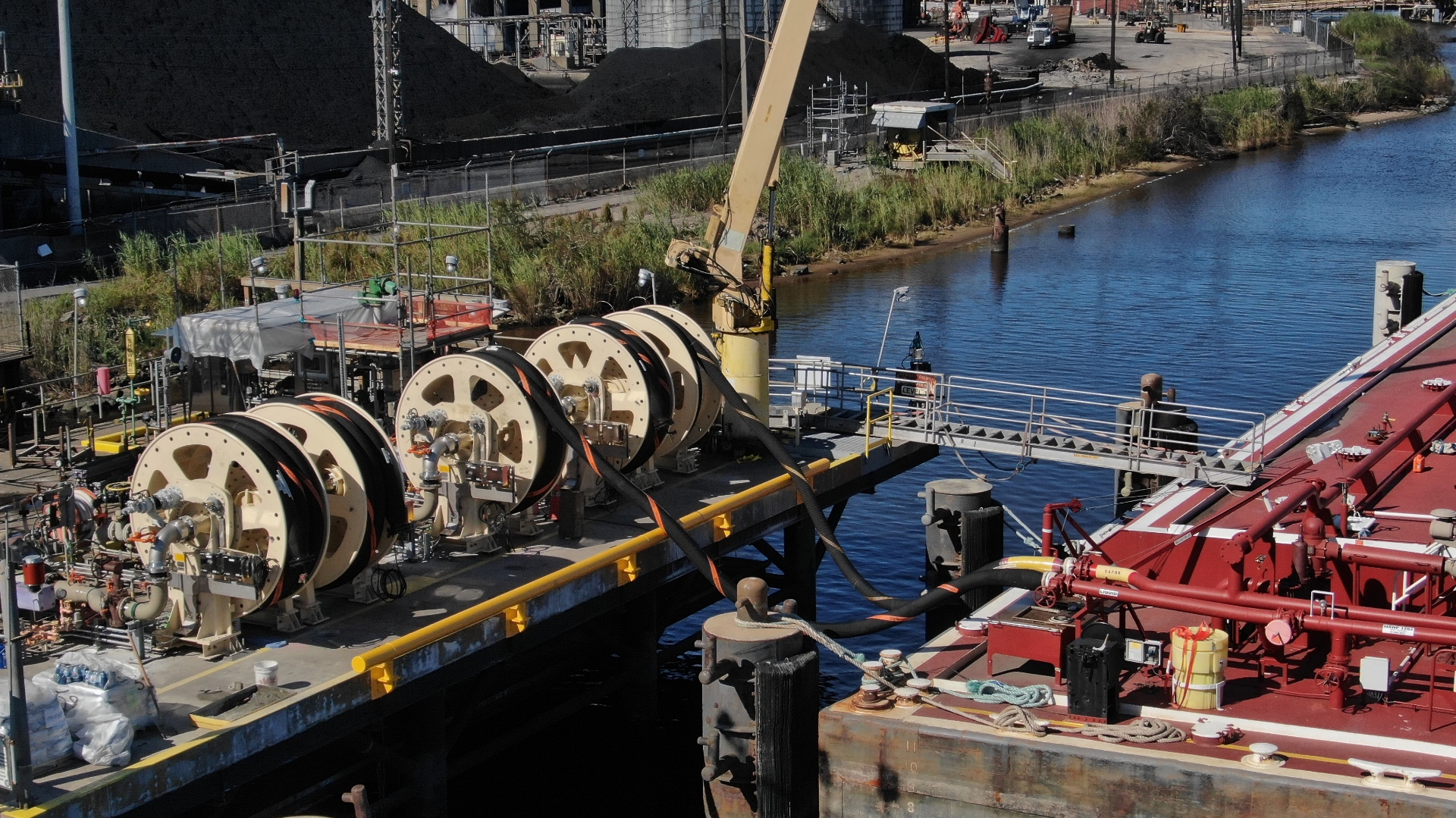

Our latest project can be found at the Chemical Plant in Beaumont - Texas. The 1st installation of its kind in the USA. We have designed, built, delivered and installed 12 QuayReel®/DockReel® Systems, divided over 3 berths, as a replacement for their current 26-year-old marine loading arms.

BlackWolf Automated 3D API Tank Analysis

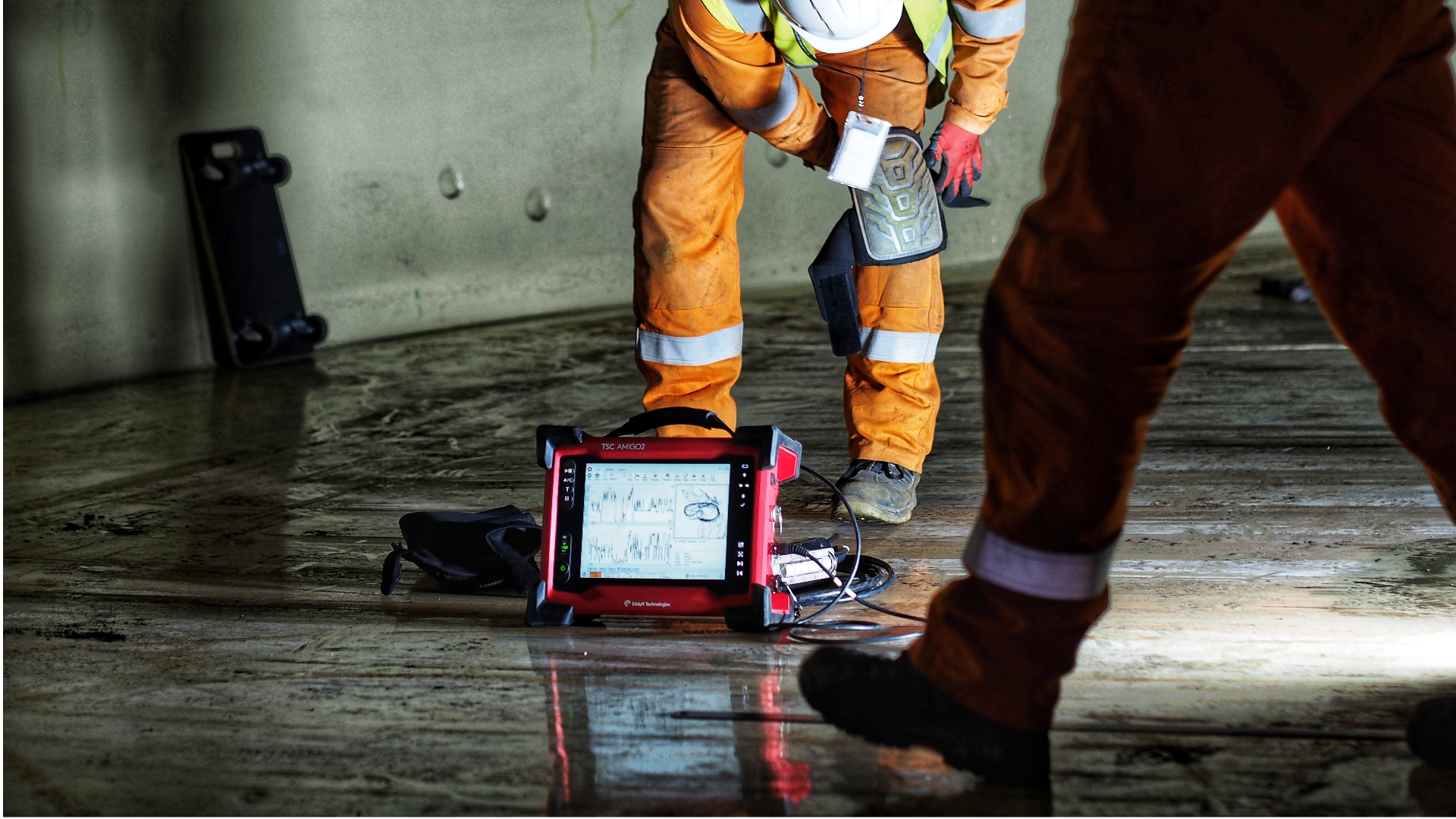

Virtual reality meets industrial inspection: with Terra Inspectioneering's 3D modelling technology, inspection data is plotted on a virtual model so it is easy to position inspection data.

Clarity represents a transformative leap in digitalisation, marking a significant advancement in the management of assets, particularly for operators in the tank storage sector. This innovative platform addresses the longstanding challenges of fragmented information systems by offering a unified, comprehensive view of all relevant data, thereby streamlining operations and enhancing decision-making processes. The key features of Clarity include: 1. 3D Reality Model (3DRM): A photorealistic digital twin of the entire facility, offering detailed visualisations of components for enhanced operational insight. 2. Clarity Capture App: A mobile application utilising advanced AI to update the 3DRM, ensuring the digital twin remains current. 3. Contextualised Asset Data: Linking detailed specifications, documents, and procedures to assets for intuitive information access. 4. Smart P&ID: Integration of P&IDs with the 3DRM for efficient component location and identification. 5. Smart Workflows: Tagging of operational and maintenance activities in the 3D model, standardising procedures, and integrating permit and isolation management. 6. Connected Workforce: An Augmented Reality (AR) enabled mobile app that visualises equipment data and workflows in an AR context, facilitating immersive interaction. The benefits Clarity brings to the tank storage sector are multifaceted, significantly enhancing operational efficiency and strategic decision-making. It ensures business continuity by centralising and contextualising relevant information in 3D, allowing for quicker, more informed decisions. It also improves safety with virtual inspections, and transforms tacit knowledge into explicit, aiding in proactive maintenance to minimise downtime. By streamlining data access and enabling real-time, error-free updates, Clarity reduces costs and enhances collaboration for crisis management. It also decreases work errors and enhances safety standards, benefiting all, especially new staff.

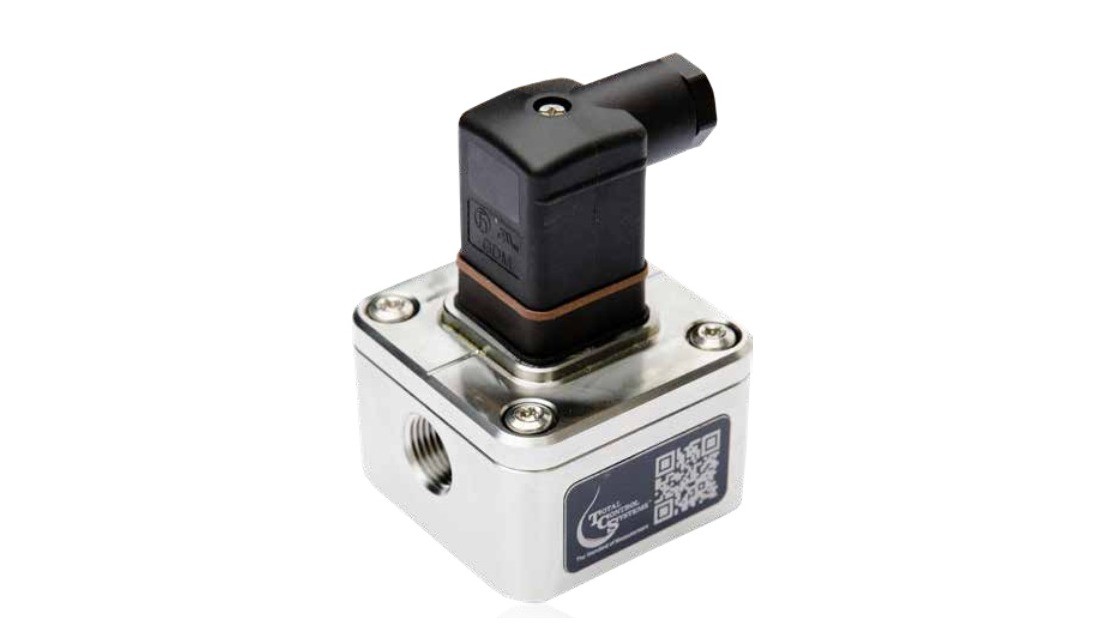

The oval gear flowmeter is a precise positive displacement meter incorporating a pair of oval geared rotors. These meters are capable of measuring the flow of a broad of clean liquids. The unit is made in stainless steel rendering it suited for most water based products, chemicals and lubricating liquids. This meter is available as a blind pulse meter with non-factored pulse output capable of interfacing to most monitoring and control instrumentation

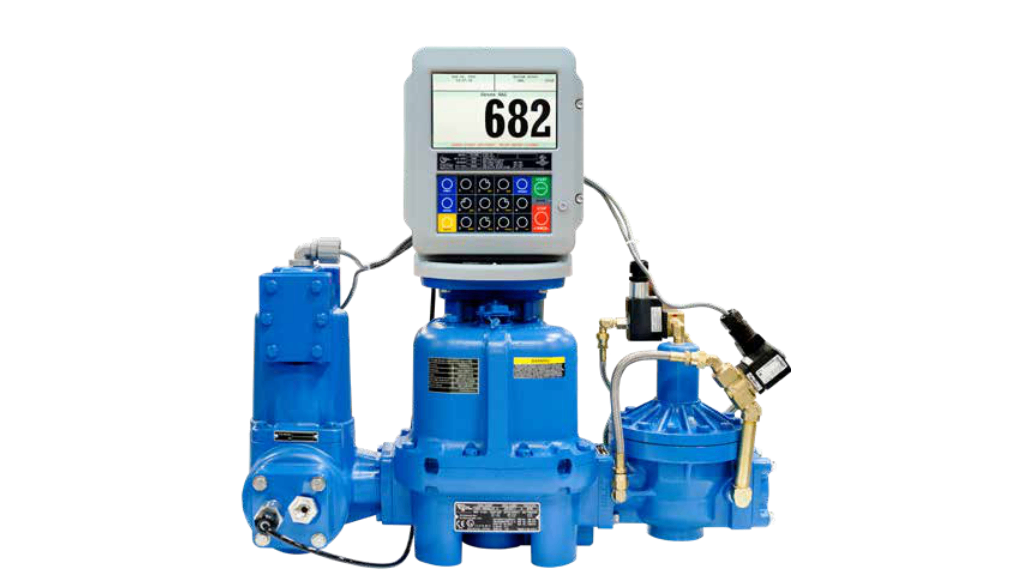

The TCS 682 reciprocating piston flow meter is a true positive displacement meter that has a unique inline design consisting of three reciprocating pistons operating within their respective measuring chambers. Each piston works in a manner similar to an automobile engine. The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it. The valve pivot drives a sliding valve from piston to piston as a known amount of product flows through each cylindrical bore, controlling the sequence of events in a smooth mechanical motion. This smooth mechanical motion is then transferred through the drive shaft to the register. The TCS 682 reciprocating piston flow meter combines outstanding accuracy (0.1% of flow rate) with one of the widest turndown ratios in the industry (250:1). The TCS 682 reciprocating piston flow meter has a rugged industrial design that is tolerant to changing viscosities, temperatures and liquids with suspensions and solids. This proven design has over 80 years of unmatched performance and continues to provide the very best in flow measurement, backed by our industry leading 10 year warranty (5 year warranty LPG).

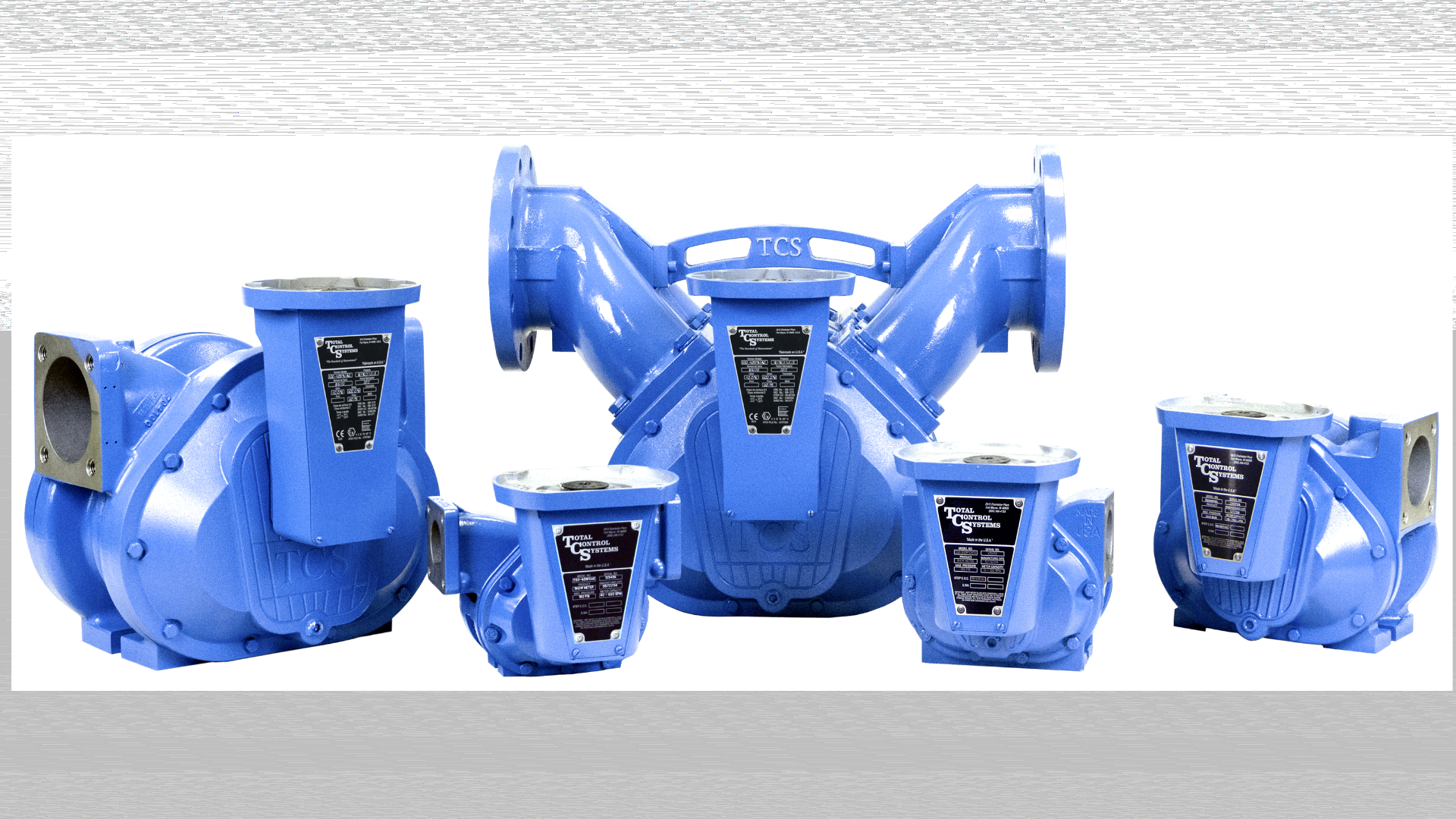

The TCS 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact within the chamber, eliminates any deterioration in accuracy and provides a long service life. The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, giving a consistent and superior measurement of accuracy.

Flame arresters are used as secondary protection against explosions by preventing the transmission of flame and explosion transfer in machines, equipment and plant, containing inflammable gas or steam-air mixtures of inflammable liquids. These autonomous safety systems limit the effects of the explosions, rendering them harmless, they are intended to allow flow but prevent flame transmission. BS&B FlameSaf arrester products use the technical principle of a ‘quenching gap’. Precision coiled arrester elements are manufactured to allow normal flow to occur and to present a barrier to flame propagation. The quenching gap selected for the combustion condition of each application is too small for flame to pass and burning is ‘arrested’. Precision coiled arrester elements offer superior safety as compared to mesh type arresters which offer less stability of quenching gap. The BS&B FlameSaf product line includes arrester technology suited to safe management of deflagration and detonation risks in piping systems and equipment. End-of-line and inline devices are available along with P/V vents that offer integral arresters.

Flame arresters are used as secondary protection against explosions by preventing the transmission of flame and explosion transfer in machines, equipment and plant, containing inflammable gas or steam-air mixtures of inflammable liquids. These autonomous safety systems limit the effects of the explosions, rendering them harmless, they are intended to allow flow but prevent flame transmission. BS&B FlameSaf arrester products use the technical principle of a ‘quenching gap’. Precision coiled arrester elements are manufactured to allow normal flow to occur and to present a barrier to flame propagation. The quenching gap selected for the combustion condition of each application is too small for flame to pass and burning is ‘arrested’. Precision coiled arrester elements offer superior safety as compared to mesh type arresters which offer less stability of quenching gap. The BS&B FlameSaf product line includes arrester technology suited to safe management of deflagration and detonation risks in piping systems and equipment. End-of-line and inline devices are available along with P/V vents that offer integral arresters.

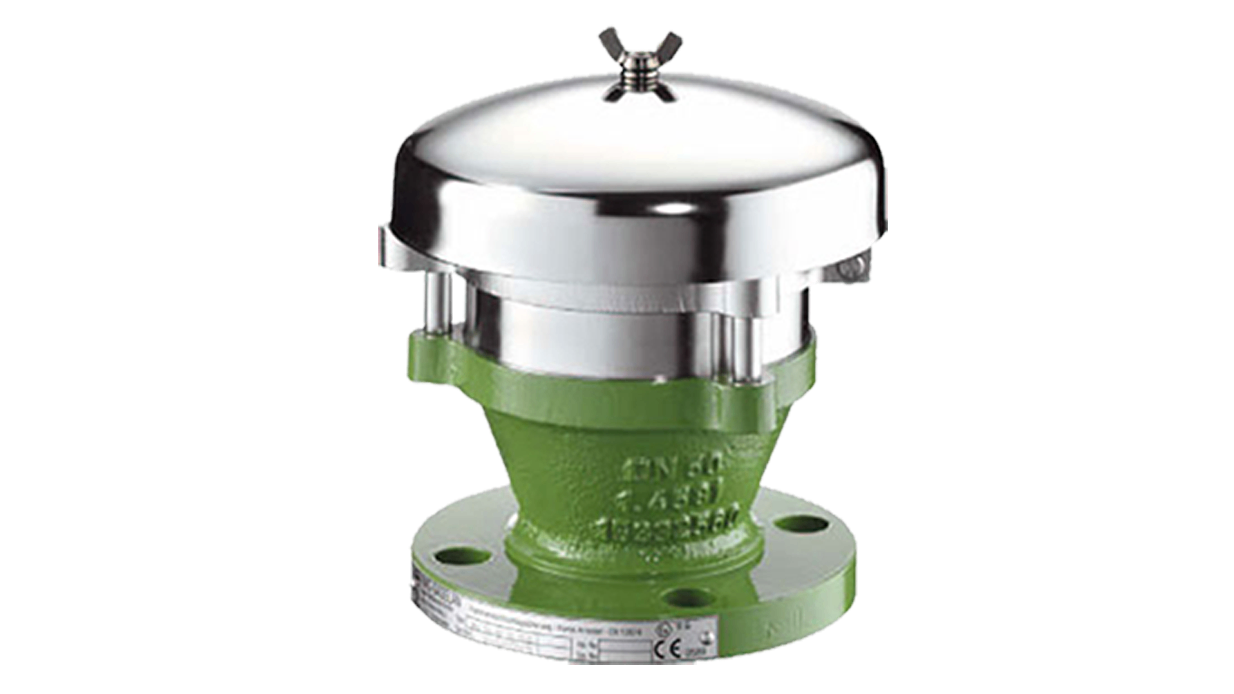

The BS&B FlameSaf® Model 934-BM end-of-line deflagration arrester was developed to prevent flame transmission caused by endurance burning or atmospheric deflagration. Features • Protection against atmospheric deflagration and endurance burning • Endurance burning protection for hydrocarbons and alcohols up to and including explosion group IIB • Type-approved in accordance with ATEX Directive 2014/34/EU and EN ISO 16852:2016 • Certified to IMO MSC/Circular 677 & 1009 (as amended by IMO MSC.1/ Circular 1324 & 1325) • Available in nominal sizes DN40 (1.5”) to DN 80 (3”) • The standard design can be used for operating temperatures up to +60°C / 140°F Protection Gas/Air or Vapour/Air mixtures for hydrocarbons and alcohols for Explosion Groups up to and including IIB (MESG ≥ 0.5 mm) Flange Connection Type EN or DIN: ISO 7005 - PN10 ANSI: ANSI B.16.5 - 150 RF

The BS&B FlameSaf® breather valves offer a reliable, proven and efficient solution for protecting your people and plant without disrupting the operation. Drawing on our extensive experience in the industry, the 937-E series of weight loaded pressure and vacuum breather valves for vessels and storage tanks offer a dependable, internationally certified and precise solution to regulate pressure, preventing implosion or rupturing while providing protection against atmospheric deflagrations. The valves, which include an integral flame arrester, positioned to minimize plugging, along with a light-weight, compact design, are expertly engineered to respond to even minimal changes in pressure. Fully opening at pressure rises of just 10%, they also allow set points for pressure and vacuum, enabling users to optimize operating conditions close to limits while ensuring reliable operation that safeguards personnel and the environment. Precision engineering means less leakage and lost product. Suitable for flammable liquids, the 937-E is fully certified in accordance with the ATEX Directive 94/9/EC. The 937-E series also features a modular design for ease of maintenance and lower stock requirements for spare parts.

Drawing on extensive experience in the pressure relief field, the BS&B FlameSaf® Emergency Relief Vent offers a dependable, internationally certified and precisely engineered design to prevent excessive pressure build-up and rupture of valuable tankage during abnormal operation or as a result of exposure to fire. Designed for the highest standards of precision and safety, these vents use fluoropolymer or elastomer diaphragms to provide tight seals between pallet and seat, which coupled with the 10% overpressure feature result in reliable and accurate response to even minimal changes in pressure. Users benefit from optimized operating conditions close to MAWP (Maximum Allowable Working Pressure) while ensuring operation that safeguard both personnel and environment. Features • Complies with API 2000 / EN ISO 28300 • Certified to ATEX – Directive 2014/34/EU • Achieves full open (relieving pressure) at just 10% overpressure • Flexible seal material choices including FEP, FPM, NBR and others on request. • Leakage rates much tighter than API 2000/EN ISO 28300 requirements Protection Group II EPL Ga/Gb device suitable for use with gas/air and vapour air mixtures of inflammable liquids of explosion group IIA/IIB. Flange Connection Type EN 1092- PN10 ANSI Class 150 B16.5 ISO 7005 PN10
